Engineered for high-speed precision and zero-maintenance operation. The VEGA series delivers a 3x productivity boost over conventional hydraulic systems with a uniform 25 mm/sec bending speed across the entire range.

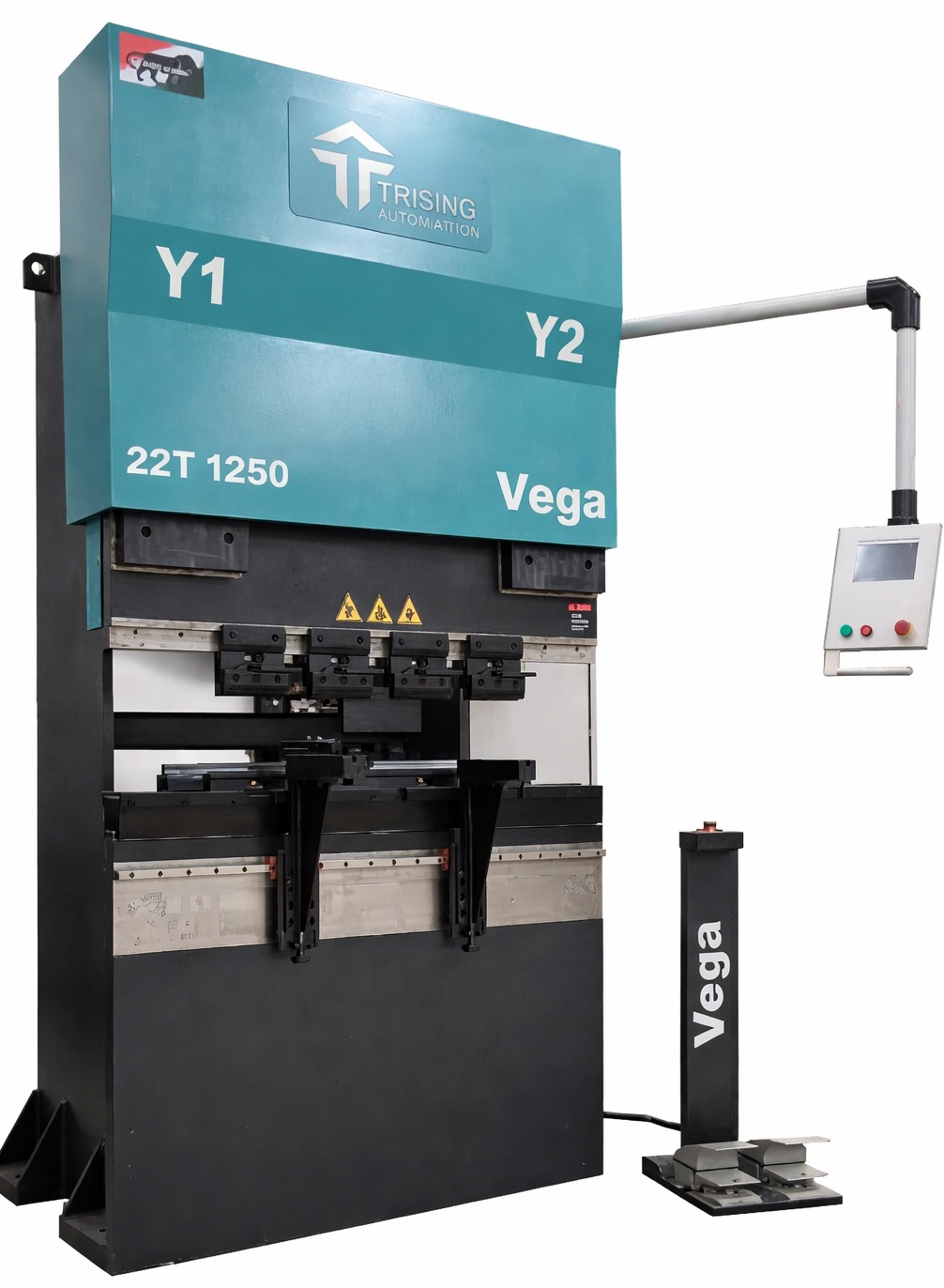

Model Featured: VEGA Series
| Technical Feature | VEGA Pure Servo Electric | Standard Hydraulic |
|---|---|---|
| Bending Speed | 25 mm/sec (Constant) | 8-10 mm/sec (Variable) |
| Energy Profile | Consumption only during stroke | Continuous power drain (Pump Idle) |
| Operating Noise | < 65 dB | 75 - 85 dB |
| Operational Cost | Near Zero Maintenance | High (Oil/Filters/Seal Kits) |
| Description | Unit | Vega 0604 | Vega 2209 | Vega 2212 | Vega 3212 | Vega 4016 |
|---|---|---|---|---|---|---|
| Bending Length | MM | 450 | 900 | 1250 | 1250 | 1600 |
| Bending Force | TON | 06 | 22 | 22 | 32 | 40 |
| Max. Stroke (S) | MM | 150 | 125 | 125 | 200 | 175 |
| Bending Speed | MM/SEC | UP TO 25 MM/SEC (Uniform Capability) | ||||
| Approach/Return | MM/SEC | 125 MM/SEC | ||||
